Voron V0.1 Kit by LDO Black
$1,022.45 AUD inc GST
Out of stock
Voron V0.1 3D printer parts kit produced by LDO.
Please select your preferred color frame.
3D Printed parts, assembly and Raspberry PI are not included
View Other Variations
Out of stock
Notify when stock available
- Description
- Additional information
- Features & Extras
- Tips
- Guides
- Bill of Material / Contents
- Technical Datasheet
- Reviews (0)
Description
Current inventory – NA
These items are shipped by sea and generally take anywhere from 30-60 days once dispatched from LDO to us.
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 43 × 39 × 13 cm |
| Color | Black, Blue, Orange, Green, Red, Purple, Gold |
Features & Extras
- Stainless Steel Linear Rails – That’s right, no more worrying about rusty rails. You’ll still want to grease these rails, but you can do it at the end of your build.
- Linear Rail Mounting Bar – Our kit includes 5 custom MGN7H size linear rail mounting bar to secure the linear rails onto the extrusions, (no need to fiddle with tiny m2 nuts on a thin plastic part)
- Brass Heatset Insert Tool – We’ve included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check here for more information.

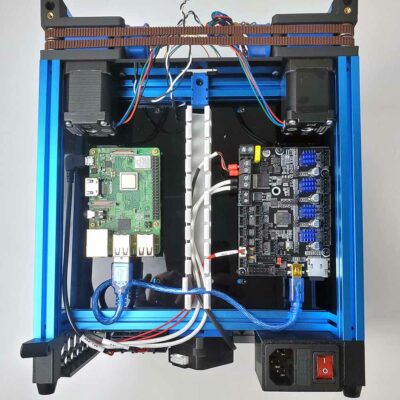

- Pre-cut & Pre-wired – Our kit includes all necessary wiring: cut to just the right length and pre-crimped or soldered to their respective parts. See our supplementary wiring guide here.
- Two Types of Nuts – We’ve included both black oxide hex nuts and stainless square nuts in our kit, use whichever type you prefer.
- Partially Threaded Screws – The small pack of partially threaded SHCS screws (M3x30/x35) are for the mini-afterburner, they help reduce wear on the Guidler and Latch parts.
- Hex Wrenches – We found that 1.5mm hex wrenches wear out easily, so we threw in a bunch of them. However, you should definitely still buy a set of good quality hex wrenches.
- Threadlocker – Rev. A kits include a small tube of threadlocker for use on grub(set) screws. Starting from Rev. B, a separate bag of set screws with precoated threadlocker is included.
- 2mm Drill Bit – Metric drill bits may not be very common in some parts of the world, so we included one. Use it to ream the filament path in your printed extruder parts.
- RTV Glue – Rev. A kits include a tube of RTV glue for securing the heatpad to the aluminium build plate. Check out this great video by Nero3D for assembling a safe build plate. Starting from Rev. B, build plates will ship partially assembled with the heatpad and RTV glue pre-applied.
Tips
- Take advantage of the Voron on Discord: https://discord.gg/voron. The community is very active on Discord and the users are very helpful on the #voron_0_questions channel.
- Download Fusion 360 and get a free license to view the 3D model of the printer. The 3D model is a very useful reference when the manual is ambiguous or unclear.
- Check out Nero 3DP’s Youtube channel, he has a ton of videos on assembling Voron printers.
- Get a serial number once you finish building your Voron.
- The stock LDO kits include 2mm tophat panels, all other panels are 3mm (see supplementary print guide).However, some vendors will include their own unique panels, check with your vendor.
- The Z axis cable chain may include more links than needed. When installing, move the build plate to the most most position, then fit the cable chain and remove links as needed. Beware, if your cable chain is too long, it may interfere with Z homing!
Guides
- Printed Parts Guide (LDO supplement) – Are you planning on printing parts before the kit arrives? Read our supplementary print guide to see which parts to print/replace/omit.
- Wiring Guide – We created this supplementary wiring guide to make wiring your printer a breeze.
- Nuts in 1515 Extrusions – See our short guide here for tips on handling nuts in 1515 aluminium extrusions.
Bill of Material / Contents
Bill of Material / Contents – correct as of 12/9/21:
please check and confirm kit contents prior to purchase at:
http://docs.ldomotors.com/en/voron/voron01/LDO_V0
| Parts Box | Items/Specs/Part NO | Qty. |
| Build Plate & Parts | Drag Chain, 7x7mm | 1 |
| Aluminum Build Plate, 120x120mm Cast Aluminum | 1 | |
| Keenovo Silicone Heater, 100x100mm, 24VDC 60W, w/ Thermal Fuse | 1 | |
| Die Springs, Yellow, 8x4x20mm | 3 | |
| LDO Flex Plate, 120x120mm, Double Side PEI Coated | 1 | |
| LDO Flex Plate, 120x120mm, Single Side Smooth PEI | 1 | |
| Rubber Magnetic Pad, 120x120mm | 1 | |
| Thumb Nut, M3, SS304 | 3 | |
| Electronics & Wiring | DC/DC Buck Converter, 24V to 5V | 1 |
| Raspberry Pi 3B+ (not included) | 1 | |
| MicroSD Card, 16G | 1 | |
| Blower Fan, 3010, 24V | 2 | |
| Axial Fan, 3006, 5V | 1 | |
| AC Inlet | 1 | |
| Fuse, Slow Blow, 250VAC 2A | 2 | |
| Heat Cartridge, 24V 50W | 1 | |
| Thermistor, NTC 100K B3950 | 1 | |
| LDO V0.1 Cable Kit (pre-cut&wired) | 1 | |
| Bowden Tubing, 4x3mm | 1 | |
| Zip Ties, 3x150mm | 100 | |
| Fasteners, Tools & Misc | Shim Washer, 6x3x0.5mm | 38 |
| Hex Nut, M2 | 60 | |
| Hex Nut, M3 | 130 | |
| Square Nut, M3 | 110 | |
| Lock Nut, M3 | 6 | |
| Machine Screw, BHCS, M2x6 | 75 | |
| Machine Screw, FHCS, M2x6 | 12 | |
| Machine Screw, SHCS, M2x8 | 12 | |
| Machine Screw, BHCS, M2.5×6 | 6 | |
| Machine Screw, BHCS, M3x6 | 63 | |
| Machine Screw, BHCS, M3x8 | 110 | |
| Machine Screw, BHCS, M3x10 | 28 | |
| Machine Screw, BHCS, M3x12 | 28 | |
| Machine Screw, BHCS, M3x16 | 6 | |
| Machine Screw, BHCS, M3x25 | 12 | |
| Machine Screw, BHCS, M3x30 | 12 | |
| Machine Screw, BHCS, M3x35 | 33 | |
| Machine Screw, BHCS, M3x40 | 12 | |
| Self-tapping Screw, M2x10 | 17 | |
| T Nut, 15×5.4×1.5 | 2 | |
| Brass Heatset Insert, M3x5x4 | 60 | |
| LDO customized Brass Heatset Insert Tool (Solder Tip) | 1 | |
| 3M VHB Tape | 1 | |
| Rubber Feet, 14x11x9mm | 4 | |
| Magnets, Neodymium, Round, 6x3mm | 10 | |
| Drill bit, 2mm | 1 | |
| Hex Wrench, 1.5mm | 3 | |
| Hex Wrench, 2mm | 1 | |
| Hex Wrench, 2.5mm | 1 | |
| Frame Kit | LDO V0 Frame kit (Color options: Black, Red, Blue, Purple, Green, Orange, Gold) | 1 |
| Linear Rail Kit | LDO customized Linear Rail Mounting Bar for V0.1 | 5 |
| LDO Stainless Steel Linear Rail Kit 5xLDO-SLR7H-150Z0 | 1 | |
| Motor Kit | LDO V0.1 Motor Kit, Teflon coated Z motor leadscrew shaft. | 1 |
| LDO Anti Backlash Nut, POM, Tr8X8 | 1 | |
| Panels | Side Panel 211mm x 229mm x 3mm Acrylic, Clear | 2 |
| Front Door 212mm x 239mm x 3mm Acrylic, Clear | 1 | |
| Rear Panel 212mm x 248mm x 3mm Acrylic, Matte Black | 1 | |
| Mid panel 170mm x 230mm x 3mm Acrylic, Matte Black | 1 | |
| Motor Panel 37mm x 122mm x 3mm Acrylic, Matte Black | 1 | |
| Deck Panel 172mm x 209mm x 3mm Acrylic, Matte Black | 1 | |
| TopHat Front/Rear Panel 2mm Acrylic, Clear | 2 | |
| TopHat Side Panel 2mm Acrylic, Clear | 2 | |
| TopHat Top Panel 2mm Acrylic, Clear | 1 | |
| Toolhead & Motion | Original Bondtech Drive Gear Kit | 1 |
| Teflon Tube, 4x2mm | 1 | |
| Thumb Screw Assembly | 1 | |
| Bearing, MR85 | 2 | |
| Bearing, F623-RS | 24 | |
| Pulley 2GT 20T (6mm wide) (5mm bore) | 2 | |
| Gates Belt, 2GT RF, 6mm | 4 meter | |
| Machine Screw, SHCS, M3x30, Partially Threaded | 2 | |
| Machine Screw, SHCS, M3x35, Partially Threaded | 3 | |
| PSU | Meanwell LRS-150-24 | 1 |
| Controller | Bigtreetech SKR mini E3 (v2) | 1 |
| Power Cord | C13 Power Cord, 1.5 meter | 1 |
| Hotend | Phaetus DragonFly BMO Hotend (Please don’t use the SCHC M2.5×6 in the hotend kit and use the BHCS M2.5×6 from hardware kit for mounting) | 1 |
| N/A | PVC Wire Duct, 20Wx25H-mm | 330mm |
